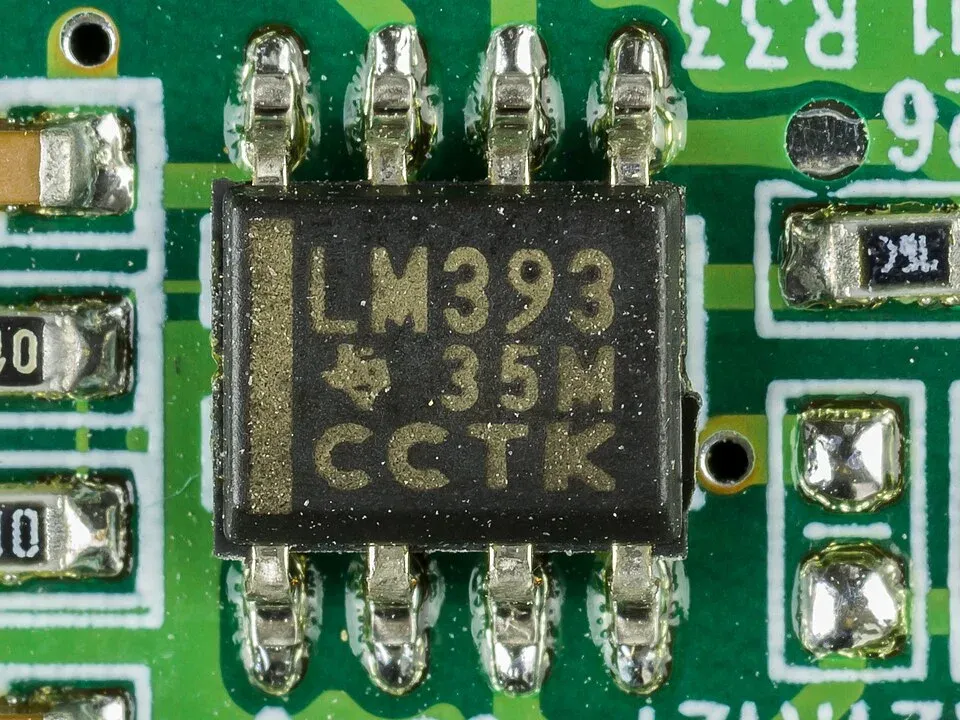

A comparator chosen for a headline delay may miss a system deadline when the input barely crosses the threshold or the output rises through a weak pull-up. The useful specification is the time until the receiving circuit recognizes a valid state under the actual operating conditions.
Build the selection around the threshold event, input waveform and digital interface. This is a switching decision rather than a linear amplifier substitution; the op amp replacement guide addresses the separate problem of feedback-loop operation.
Why does comparator overdrive change propagation delay?
Overdrive is the input differential beyond the switching threshold, and a comparator’s delay can change substantially with that differential. Compare candidate devices at relevant input conditions instead of ranking delay numbers measured with unlike signal steps.
Analog Devices’ discussion of propagation-delay measurements also identifies supply voltage, common-mode level, output loading, edge direction and temperature as important conditions. Its practical implication is that the timing number must travel with its measurement definition.
For a slowly moving input, the differential immediately after threshold crossing may be much smaller than the overdrive used in a data-sheet test. A large-step delay specification therefore does not, by itself, establish response to that ramp. Record the ramp slope or step size and the minimum useful differential in the system requirement.
Input offset and threshold-reference error deserve their own budget. They can move the point at which switching begins, even if the comparator’s propagation time after that event is acceptable. Do not hide a threshold-position error inside a timing margin.
How much delay can an open-drain pull-up add?
An open-drain output rises according to the pull-up network and its load after the output transistor releases. Estimate the time to the receiving input’s high threshold, then verify how that interval relates to the comparator’s published timing measurement.
In a hypothetical ideal RC example, a 10 kΩ pull-up and 20 pF total load give a time constant of 200 ns. Starting near zero, the rise time to 70% of the pull-up voltage is:
t = −R × C × ln(1 − 0.70) ≈ 241 ns
Reaching 90% takes approximately 461 ns. These values describe the assumed output network after release, not a measured comparator propagation delay. They exclude transistor turn-off behavior and other nonideal effects.
Avoid double counting. If a data-sheet delay already ends at 50% of the output transition with the specified load, adding the entire calculated rise time repeats part of that interval. Align the measurement endpoints or measure the complete threshold-to-logic-valid path.
A smaller resistor speeds the rise but increases the low-state sink current. At 3.3 V, a 10 kΩ pull-up would draw approximately 0.33 mA with an ideal zero-volt low output. Check the real output-low limit at the required current, the allowed pull-up voltage and the load capacitance, including the receiving pin and board routing.
When does hysteresis improve a threshold detector?
Hysteresis helps when input noise or a slowly changing signal would otherwise cause repeated transitions near one threshold. It creates separate rising and falling trip points, so the signal must move farther before the output reverses.
That wider separation also changes the application’s switching thresholds. Select it from the allowable trip-point range and expected noise, rather than adding an arbitrary positive-feedback resistor. Analog Devices’ comparator selection guidance provides context for assessing comparator architecture and interface requirements.
For external hysteresis, consider whether the threshold network depends on output-high voltage, output-low voltage or loading. An open-drain output pulled to a different rail may alter the feedback calculation. Include resistor tolerance and reference uncertainty in the two trip-point limits.
A timing acceptance record for the alternate
Keep the comparator comparison tied to a defined test condition: supply corners, common-mode range, input transition, output load, receiving thresholds and temperature range. Specify which limits are guaranteed by the manufacturer and which require application validation.
The resulting record should report both trip points and the relevant output-edge timing. It should also show behavior during startup and any valid input condition near the supply rails. A device that switches quickly at room temperature with a large differential has answered only one part of the selection question.
Frequently Asked Questions (FAQ)
Can an op amp automatically replace a comparator with the same pinout?
No. Confirm that the device is intended for comparator operation and check recovery, input conditions, output interface and timing. Linear amplifier specifications do not establish suitable threshold-switching behavior.
Is a typical delay curve a production maximum?
No. A typical curve describes representative behavior under its stated conditions. Use guaranteed limits where available and qualify the remaining operating corners against the system timing requirement.
Should both comparator output edges be tested?
Yes, when both edges matter to the application. Rising and falling propagation delays and output transition times can differ, especially when one transition depends on an external pull-up.
