Motor-Driver Decay Mode: Tune Current Ripple and Zero-Crossing Behavior

By SupplyICs Editorial

Updated

Table of Contents

Current decay determines what an H-bridge does after its current regulator reaches the chopping threshold. During that off-time, the winding current can recirculate slowly or be forced down quickly. The choice changes torque smoothness, current error, power loss, and sound.

The correct setting depends on winding inductance and resistance, supply voltage, back EMF, commanded current slope, and the driver’s fixed-off-time algorithm. A mode that looks clean at standstill may lose current tracking at operating speed.

How do slow, fast, and mixed decay change stepper winding current?

Slow decay recirculates winding current with a relatively small opposing voltage, fast decay applies reverse bridge voltage for a steeper decrease, and mixed decay uses both during the off-time. The resulting current slope depends on winding inductance, resistance, supply, back EMF, and bridge drops; the exact recirculation path is driver-specific.

The approximate current slope follows di/dt = V/L. The relevant V includes supply, back EMF, winding resistance, and semiconductor drops, so one decay percentage cannot suit every motor and speed.

Texas Instruments SLVA321, accessed September 24, 2026, explains slow, fast, and mixed recirculation paths and their effect on winding current. Use the candidate driver diagram because synchronous rectification and decay timing vary between architectures.

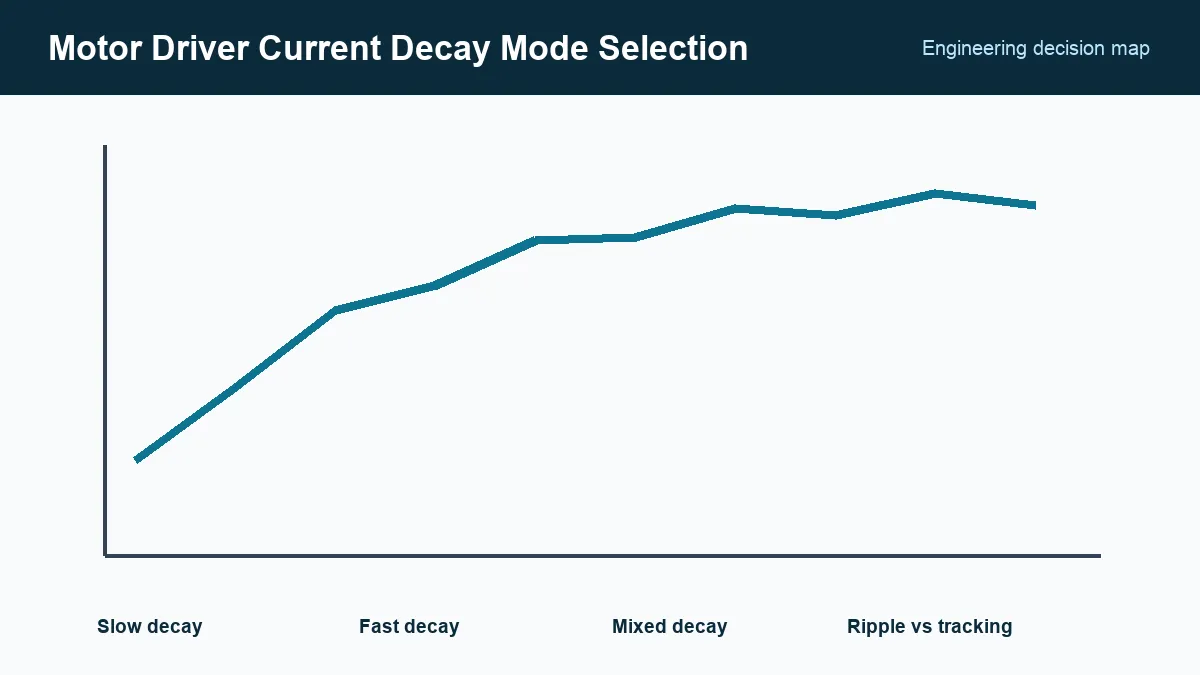

Winding-current waveforms under slow, fast, and mixed decay

How can current waveforms reveal an unsuitable decay setting?

Compare measured winding current with the commanded microstep reference through all four quadrants, especially decreasing-current regions and zero crossings. Current that stays above the falling target suggests insufficient decay; excessive undershoot and triangular ripple can indicate too much fast decay for that operating point.

Near zero crossing, blanking time, minimum on-time, comparator delay, and sense offset can dominate. Use a suitable current probe or sense-amplifier measurement to separate these limits from a decay-mode mismatch.

Do not tune from motor sound alone. A quieter setting can hide waveform distortion that reduces torque, while a spectrally different switching pattern can sound louder without harming current accuracy.

Separate acoustic behavior from current accuracy

After current tracking meets its limits, measure sound in the installed mechanical system. Motor mounting, enclosure panels, switching-frequency modulation, and step rate can move electrical ripple into an audible resonance. Changing decay to escape one tone is acceptable only if current error, temperature, and torque remain inside their qualified envelopes.

Record both the electrical configuration and the mechanical test condition. Otherwise a quiet bench motor can become noisy after installation, or an acoustic improvement can be mistaken for better current regulation.

Include speed, supply, and load in the test matrix

Back EMF increases with speed and changes the voltage available to force current up or down. Test standstill, acceleration, the required speed range, load transitions, and deceleration. Repeat at minimum and maximum motor supply and at winding-temperature extremes.

STMicroelectronics’ stepper-motor driving note, accessed September 24, 2026, relates chopping behavior to motor electrical parameters and drive topology. Measure the actual winding resistance when hot if thermal torque margin matters; copper resistance rises with temperature.

Motor-drive electronics connected for waveform and motion testing

Use the production motor, harness, supply impedance, and mechanical load. A laboratory motor from the same nominal family can have different inductance and detent torque.

When does automatic motor-current decay still need validation?

Validate automatic decay at low current, reversals, rapid command changes, and transitions from sleep, where blanking, minimum on-time, and off-time rules can limit tracking. Adaptive modes may use comparator activity, direction, or learned timing; their presence does not establish acceptable ripple across every motor and operating point.

Read how the algorithm behaves after sleep, at current reversal, and when the requested current is below the regulator’s accurate range. Check whether configuration pins are sampled only at power-up and whether internal pull resistors establish a safe default during controller reset.

Release operating envelopes with the configuration

Document motor part number, winding resistance and inductance, supply range, current setting, sense resistance, microstep mode, decay configuration, off-time or frequency, blanking time, and firmware register values. Attach current plots at the limiting speed, supply, and temperature conditions.

Acceptance criteria should cover peak and RMS current, tracking error in decreasing quadrants, zero-crossing distortion, current ripple, driver temperature, missed steps, and acoustic limits where relevant. This turns “mixed decay sounded best” into a reproducible drive specification that survives a driver or motor substitution.

Frequently Asked Questions (FAQ)

Why does slow decay distort stepper-motor current at higher speed?

Back EMF and winding inductance can prevent current from falling to the next commanded level during the fixed off-time. The actual current then lags the sine reference, especially near decreasing-current quadrants.

Is fast decay always better for current regulation?

No. Fast decay reduces current quickly but usually increases ripple, switching loss, and acoustic excitation. The best mode follows the current reference with acceptable ripple across the required speed and supply range.

What is mixed decay?

Mixed decay applies fast decay for part of the off-time and slow decay for the remainder. Drivers implement and name it differently, so the timing and adaptive behavior must be checked in the exact datasheet.
