STM32G474RET6 Sourcing for Motor Control and Digital Power

Table of Contents

• Why Is STM32G474RET6 Demand Application-Specific?
• Which Features Drive Motor-Control and Power-Conversion Designs?
• Decode STM32G474RET6 and STM32G474RET6TR
• Check Silicon Revision, Errata and Board Assumptions
• What the Current ST Signal Means
• 2026–2027 Demand Outlook: Three Scenarios
• Build an RFQ That Protects Production
• What Must Be Requalified for an Alternative?
• Incoming Inspection and Firmware Controls

STM32G474RET6 attracts demand because it combines real-time control and an unusually dense analog subsystem in one 64-pin MCU. For a motor drive or digital-power controller, replacing it can mean reworking current sensing, PWM timing, protection trips, control firmware and EMC behavior at the same time. Procurement should therefore control the exact STM32G474RET6 or STM32G474RET6TR order code, monitor confirmed delivery evidence and involve engineering before considering another STM32G4.

ST showed both orderable codes as Active on September 9, 2026. That is a positive lifecycle signal, but the live product page did not report distributor inventory in its embedded availability table at the time checked. Neither observation establishes global stock. A current, quantity-specific quote remains the commercial evidence.

Why Is STM32G474RET6 Demand Application-Specific?

General-purpose MCU demand can move between memory and package options. A control-oriented part is harder to redirect because the surrounding circuit is built around its analog and timing resources.

ST’s STM32G474RE product page describes a 170 MHz Arm Cortex-M4 device with five fast 12-bit ADCs, seven comparators, six operational amplifiers, seven DAC channels and a high-resolution timer. ST’s digital-power ecosystem positions the family for digitally controlled conversion, while its G474 evaluation platforms cover motor control and power supplies.

That integration can remove external analog components and shorten protection paths. It also creates lock-in: a replacement MCU with the same core frequency may not reproduce the same sampling, comparator routing or PWM event structure.

Which Features Drive Motor-Control and Power-Conversion Designs?

Resource	System use	Sourcing consequence
Fast ADCs	Phase current, bus voltage and temperature sampling	Validate channel count, trigger routing, sample timing and input network
Integrated op amps	Current-sense signal conditioning	A substitute may add external amplifiers and change gain/error budget
Comparators	Fast overcurrent or overvoltage trips	Compare internal routing and shutdown latency, not just comparator count
HRTIM	Fine-resolution PWM for power conversion	Requalify switching timing, dead time, control loop and EMI
Motor-control timers	Complementary PWM and protection inputs	Check pin assignment and firmware register behavior
FDCAN	Industrial or vehicle-network connection	Confirm transceiver, timing and software stack assumptions

The device data sheet is the control document for guaranteed limits. Marketing resource counts help screen candidates, but the released design must be validated against the exact silicon revision, operating voltage, temperature range and timing conditions.

Decode STM32G474RET6 and STM32G474RET6TR

The full order code prevents several common mistakes. G474 identifies the feature line, R corresponds to the 64-pin device configuration, E identifies the 512 KB Flash density in ST’s nomenclature, and the final grade/package fields define the industrial LQFP version. TR adds tape-and-reel packing.

Procurement should not shorten the line to STM32G474, G474RE or a top-mark string. Those labels can describe a family or body marking without fixing packing and commercial orderability. The purchase order, supplier acknowledgement, label and receiving record should all reconcile to the approved OPN.

Packing matters at production scale. A reel can reduce placement handling, but a partial reel may lose original seals or labels. State whether partial quantities are allowed, whether factory packaging is mandatory and whether a split lot requires preapproval.

Check Silicon Revision, Errata and Board Assumptions

ST’s current NUCLEO-G474RE documentation records that the board has shipped with different STM32G474RET6 silicon revisions over time. That is normal product evolution, but it means a development board, production lot and replacement lot may not contain the same revision.

Before approving a new lot or source:

1. Record the silicon revision used for released firmware and validation.
2. Review the current device errata and the workarounds implemented in software.
3. Confirm whether the proposed lot identifies a different revision.
4. Repeat the tests affected by revised errata, analog performance, timing or boot behavior.
5. Keep the result with the approved BOM and firmware release.

Do not use a Nucleo board’s availability as a proxy for bare-MCU production inventory. Evaluation boards have their own assembly schedule and can contain mixed permitted revisions.

What the Current ST Signal Means

Two observations matter as of September 9. First, ST labels STM32G474RET6 Active. Second, ST’s product-page availability widget reported no distributor inventory at the time of access and directed visitors to sales. That widget is a dated channel snapshot, not proof of a worldwide shortage.

At the company level, ST’s Q2 2026 results reported strong bookings across end markets, below-target distribution inventory and early tightness in several categories. Use that statement as a monitoring trigger. It does not identify STM32G474RET6, a package-specific allocation rule or a promised lead time.

This distinction avoids two expensive reactions: ordering speculative inventory from an unverified marketplace because of a shortage headline, or assuming Active status guarantees the required production date.

2026–2027 Demand Outlook: Three Scenarios

Base scenario: industrial automation, motor control and power-conversion programs continue to consume G4 devices at a healthy rate. Authorized dates remain obtainable when forecasts are placed early. Action: refresh the exact-part quote monthly and critical-program backlog weekly.

Tighter scenario: stronger industrial demand meets lean channel inventory, or a package/test constraint affects the LQFP64 code. The useful trigger is repeated movement in confirmed dates, not reposted lead-time claims. Action: secure released-program coverage and start alternate validation before a gap appears.

Softer scenario: channel replenishment catches up or customer builds move out. Action: reduce speculative buys, preserve cancellation flexibility and watch excess inventory quality rather than buying solely because a listing is cheaper.

These are scenario analyses, not a prediction that STM32G474RET6 will be allocated. The forecast should change only when exact OPN evidence changes.

Build an RFQ That Protects Production

Send enough information for every supplier to quote the same requirement:

• Exact OPN and acceptable packing suffix.
• Total quantity, release schedule, ship-to location and required-on-dock dates.
• Acceptable date-code range and whether mixed date/lot codes are permitted.
• Factory-sealed packing requirement and policy for partial reels.
• Authorized-channel requirement or independent-source disclosure.
• Traceability documents, label and device photos required before shipment.
• Current lifecycle, PCN and silicon-revision confirmation.
• Inspection rights, nonconformance process and warranty terms.

Browse the STMicroelectronics catalog for related listed devices, and use the RFQ workflow when a current quantity and schedule need a documented response. The site’s catalog does not currently provide a dedicated STM32G474RET6 record, so the exact OPN should be written into the inquiry rather than linked to a guessed URL.

What Must Be Requalified for an Alternative?

Another STM32G4 can be a candidate, but the comparison must extend beyond the Arm core and Flash size.

Map each used ADC input, trigger and sampling sequence. Check op-amp topology, input range and routing. Compare comparator-to-timer protection paths, high-resolution timer features, PWM outputs and fault inputs. Then review package pins, clock tree, DMA mappings, CAN and serial interfaces, option bytes, boot flow and silicon errata.

If the candidate changes external signal conditioning, gate-drive timing or the power-stage control loop, treat it as a system redesign. Repeat thermal, efficiency, protection, EMC and application safety tests. Our component alternatives service is structured around that engineering gate rather than a simple cross-reference table.

Incoming Inspection and Firmware Controls

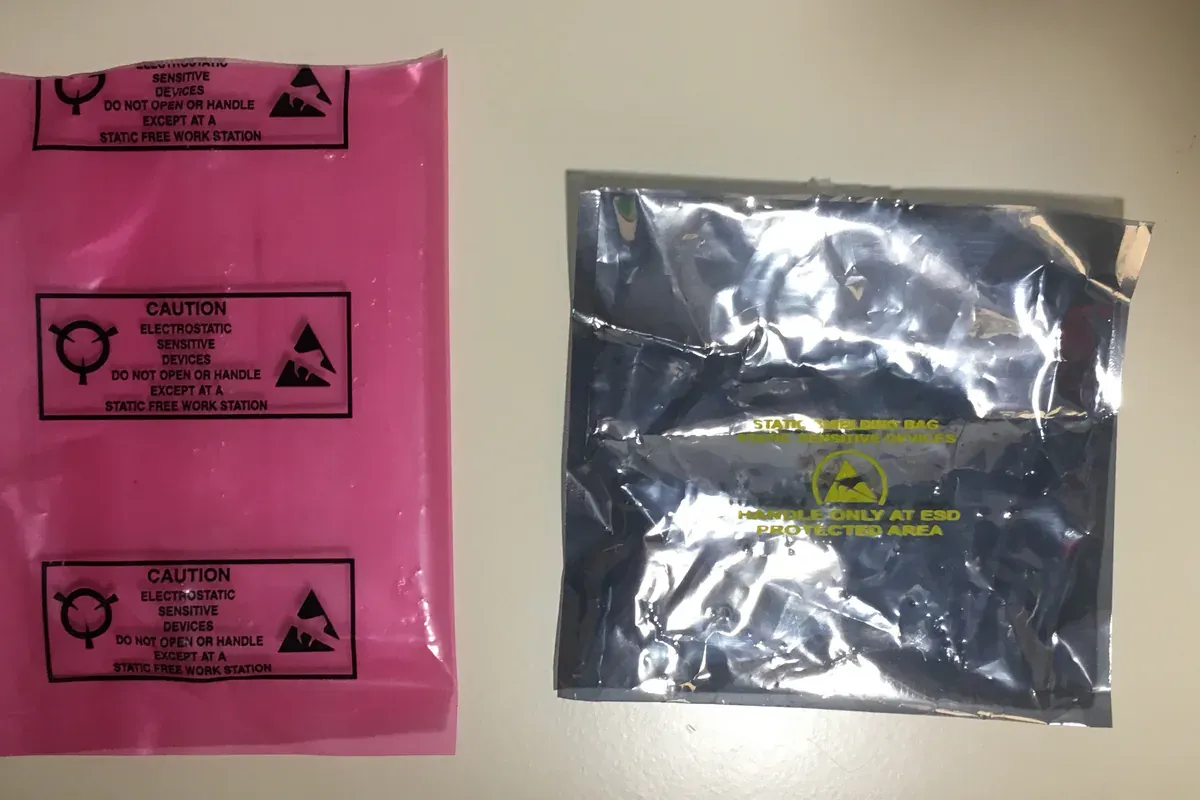

At receipt, reconcile outer label, inner label, OPN, quantity, date code, lot code and country or assembly information. Photograph the packaging before opening. For non-authorized material, scale visual, X-ray and electrical inspection to the application risk and compare the lot with a known-good reference where possible.

Keep moisture handling and floor-life records with the lot. Link the accepted silicon revision to the firmware build that passed qualification. A component can be electrically genuine and still create a field problem if the production software assumes a different errata workaround.

For industrial programs, route the result through the industrial component sourcing framework and rank the MCU in the BOM risk model. That turns a popular part number into a controlled production decision instead of a last-minute inventory search.
