Digital Potentiometer Selection: Resistance, Wiper Error, and NVM

Table of Contents

• Treat a DigiPOT as an IC Resistor Network
• Keep Every Terminal Inside Its Limits
• Specify Resistance, Resolution, and Wiper Error
• Choose Volatile or Nonvolatile Position Memory
• Match Interface, Channels, and Power-Up State
• Know When Another Function Is Better
• Validate Codes, Faults, and Production Tolerance

A digital potentiometer is an integrated resistor string and analog switch network controlled by a digital interface. It is not an electrically unlimited mechanical potentiometer with a motor attached. The analog terminals, wiper, resistor string, digital supply, memory, and switching behavior all impose conditions that must fit the original circuit.

Selection therefore begins with the analog path. Only after terminal voltage, current, resistance, accuracy, bandwidth, and fault states fit should the team choose I2C or SPI, volatile or nonvolatile memory, channel count, and package.

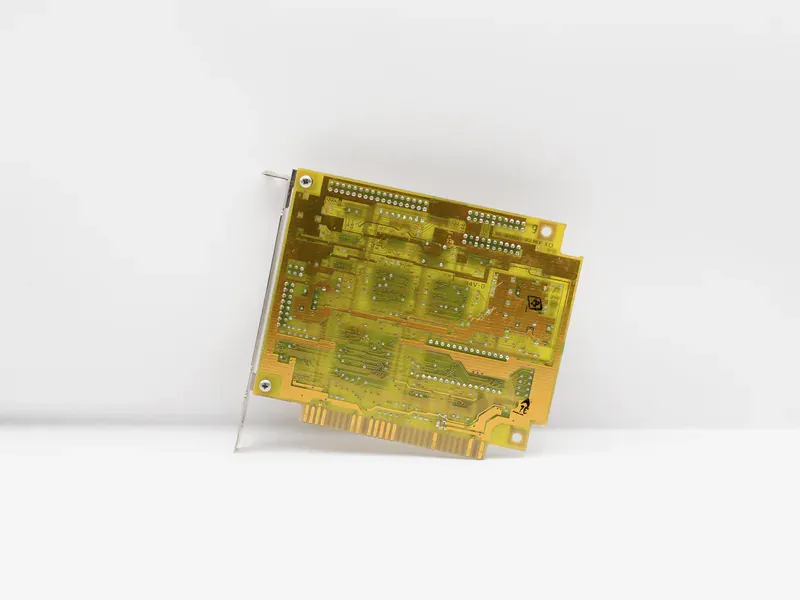

Treat a DigiPOT as an IC Resistor Network

In potentiometer mode, the end terminals form a divider and the wiper selects a fraction of the end-to-end voltage. In rheostat mode, the circuit uses the wiper and one end terminal as a variable resistance. Some devices permit both; others restrict terminal connections, current, or code use.

Draw the analog equivalent for every operating state. Identify the maximum voltage across the end terminals, current through the string, wiper current, polarity, source/load impedance, signal frequency, and the state of every rail. Include startup, shutdown, an unpowered IC with a live analog source, a disconnected load, and any service or calibration mode.

The Analog Devices digiPOT portfolio includes devices with different voltage domains, resistor values, resolutions, memory, and channel structures. The category shows the range of architectures; the exact part’s terminal ratings and code behavior govern the design.

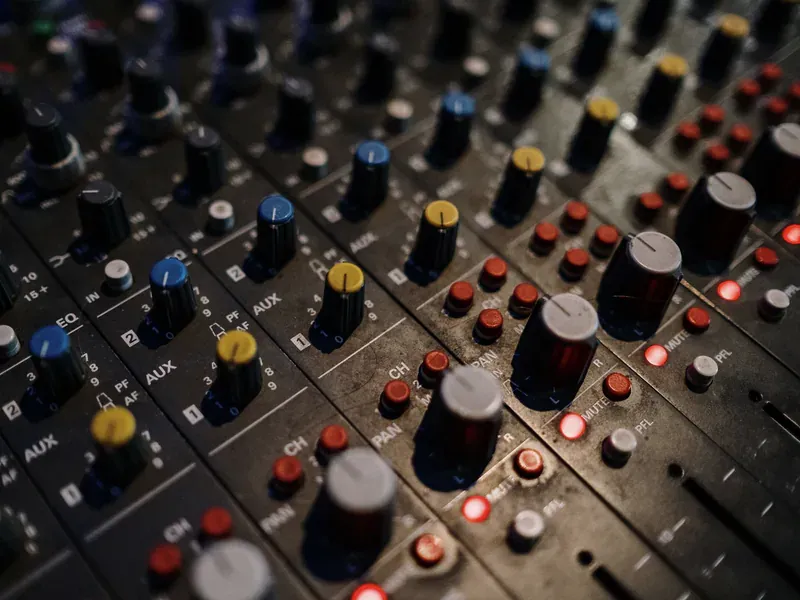

Keep Every Terminal Inside Its Limits

Many digital-potentiometer analog terminals must remain between VSS and VDD, sometimes with a small permitted margin. A bipolar audio or sensor signal can violate those limits even when its amplitude is modest. Other families support dedicated analog supplies or higher terminal voltages, but that capability must be explicit.

Check operational limits separately from absolute maximum. A protection diode that prevents immediate damage can inject current, alter the signal, back-power the IC, or corrupt the wiper state. If the analog source can remain active while digital power is absent, verify power-off protection and leakage for that exact state.

Wiper current is often much lower than the load current a mechanical potentiometer can tolerate. In divider mode, keep the wiper load high enough that it does not materially change the ratio. In rheostat mode, calculate maximum current and wiper power at every code; the smallest programmed resistance can create the highest current and concentrate error in wiper resistance.

Specify Resistance, Resolution, and Wiper Error

End-to-end resistance, often shown as RAB, can have a broad initial tolerance. In divider mode, ratio accuracy may be much better than absolute RAB because both segments are on the same string. In rheostat mode or an RC time constant, the absolute resistance tolerance can directly affect the function.

Tap count indicates the number of programmable steps, not the number of equally accurate output voltages in the loaded circuit. Include integral nonlinearity, differential nonlinearity, code-dependent wiper resistance, endpoint behavior, and whether all codes are usable. Near zero-scale, wiper resistance can dominate the requested value and prevent a true zero-ohm setting.

Temperature adds resistor-string temperature coefficient and wiper variation. Some data sheets distinguish absolute resistance tempco from ratiometric tempco; use the one that matches the topology. The ADI digital-potentiometer FAQ covers common limitations including terminal range, wiper resistance, current, and application modes.

For an amplifier gain setting, calculate gain at every relevant code using maximum RAB and wiper resistance, not just the ideal step size. Check whether a code transition can briefly pass through a higher gain or disconnect the feedback path. If the amplifier can saturate during an update, include recovery time in the control sequence.

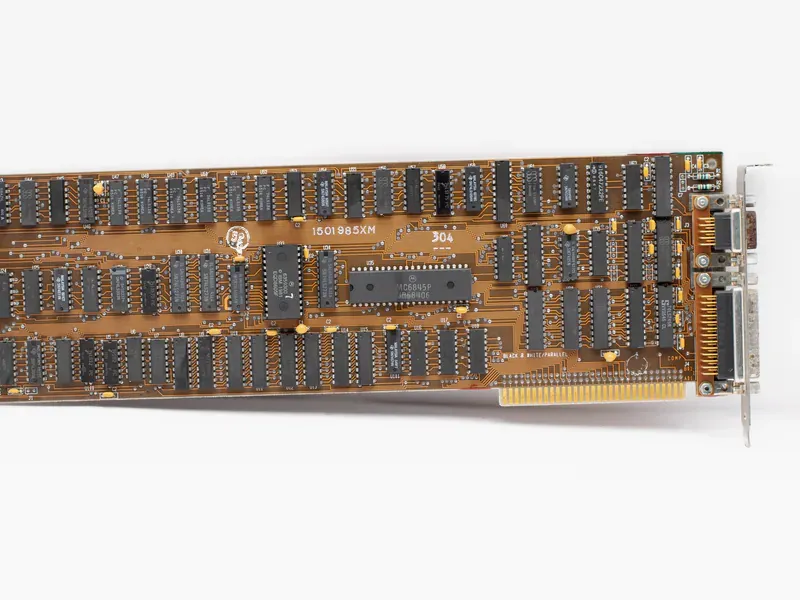

Choose Volatile or Nonvolatile Position Memory

A volatile digiPOT returns to a defined default after power loss and requires the host to write the desired code. A nonvolatile device recalls a stored wiper position, but its memory has write time, endurance, supply conditions, and often a busy/status behavior. Repeatedly writing every control-loop update into NVM can exhaust endurance unnecessarily.

Define the safe power-up position. A midscale default can be useful in a divider and unsafe in a feedback, bias, or current-limit network. Confirm whether recall occurs before the analog terminals become active, whether the wiper moves through intermediate codes, and what happens if power falls during an NVM write.

Assign ownership of the stored value. A factory calibration code, user preference, and field-service limit have different update and traceability needs. Store the calibration unit, allowed range, software version, and recovery default alongside the device code. If the part becomes obsolete, a nominally similar replacement with different NVM commands or default state can change product behavior before firmware starts.

Match Interface, Channels, and Power-Up State

I2C reduces wires and supports addressed devices; SPI can offer deterministic framing, higher update rate, daisy chaining, or simpler isolation depending on the part. Compare logic thresholds, digital supply, maximum clock, chip-select behavior, address options, readback, reset, write protection, and how a partial transaction is handled.

If logic and analog supplies differ, verify sequencing and level compatibility. An I2C level shifter may solve open-drain voltage translation, but it does not correct an out-of-range digiPOT analog terminal. Keep the digital-bus problem separate from the signal-path limits.

For multichannel devices, determine whether channels share addresses, update synchronously, or have independent memory. Simultaneous update may be necessary in balanced gain or filter networks. Channel-to-channel matching can matter more than absolute resistance, and package thermal gradients can affect the relationship.

Know When Another Function Is Better

A DAC generates a programmable voltage or current from a reference; it is usually the clearer choice when the circuit needs an accurate setpoint rather than a variable resistance. An analog switch selects among known resistors and can provide tighter, externally defined values. A programmable-gain amplifier integrates the gain network and may provide better bandwidth, distortion, and gain accuracy.

The ADI comparison of DACs and digital potentiometers frames the distinction around the required analog function. Make that architecture decision before optimizing tap count. More steps do not correct the wrong primitive.

Digital potentiometers remain useful for trimming bias, calibrating a sensor path, setting volume, programming a threshold, or adjusting a feedback network when terminal and current limits fit. The Microchip digital-potentiometer design guide provides family-level selection dimensions, but each application still needs a circuit-level worst-case check.

Validate Codes, Faults, and Production Tolerance

Test endpoint, midscale, adjacent codes around critical thresholds, and the codes that create maximum gain, current, or bandwidth demand. Measure resistance or transfer ratio over supply and temperature, with the real source and load. Observe code-update glitch, settling, distortion, noise, and amplifier recovery where relevant.

Exercise power-up, brownout, reset, bus interruption, NVM write/recall, unpowered analog inputs, and open/short terminal faults. Verify firmware range limits so a corrupted or out-of-range command cannot select an unsafe resistance. If the device controls a regulator or current limit, repeat startup and fault tests at worst code.

For an alternate, compare terminal voltage/current, RAB options and tolerance, wiper resistance, tap mapping, command protocol, NVM semantics, power-up state, package pinout, temperature grade, and bandwidth. Qualify the exact resistance and memory suffix: members of one digiPOT family can have meaningfully different analog performance. That discipline prevents a digital-interface match from hiding an analog incompatibility.
