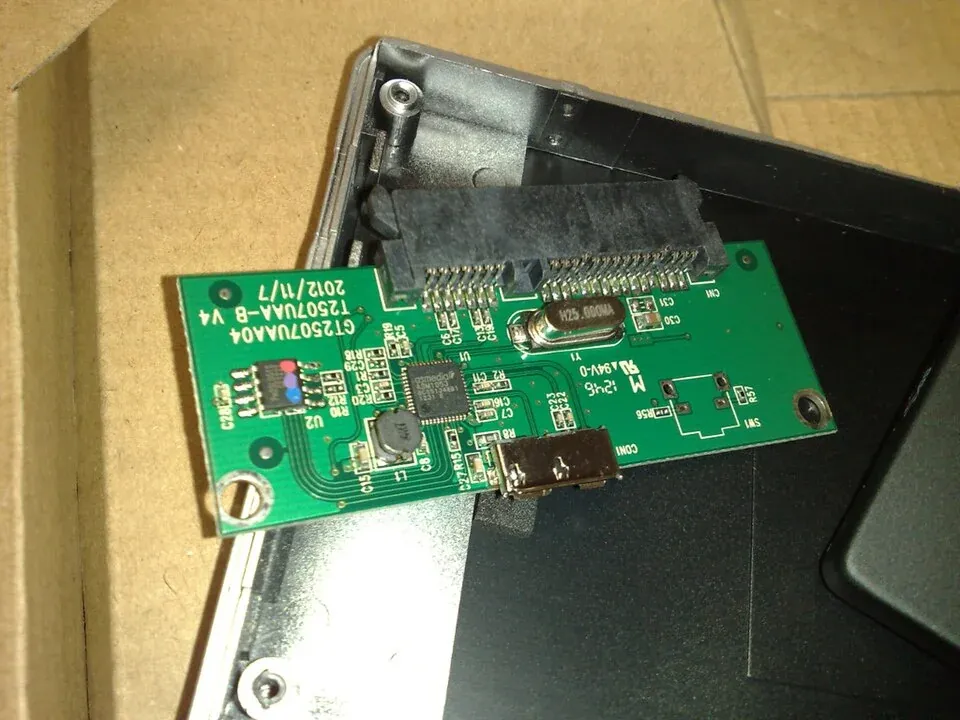

A USB-C port is not one protection zone. The high-speed pairs, USB 2.0 lines, configuration pins and VBUS see different transients and have different capacitance budgets, so a single USB ESD protection diode choice rarely fits every pin group.
Start by identifying the USB signal generation and the pin group being protected. On a USB 3.2 Gen 2 link, a diode with a higher IEC discharge rating can still close the eye if its package adds a stub or its return path runs past the connector.
Working voltage and clamping answer different questions
Compare working voltage against normal operation, then compare clamping behavior at a stated current and test waveform with the protected circuit’s transient limits. Breakdown voltage and clamping voltage are not interchangeable.
TI’s TPD4E02B04 documentation provides a useful reference point: 0.25 pF typical and 0.33 pF maximum channel capacitance, a clamping value specified at 5 A TLP, and interface examples extending to 10 Gb/s. Those conditions should travel with the numbers when candidates are compared.
| Parameter | TPD4E02B04 example | What to require from every candidate |
|---|---|---|
| Working voltage | Four-channel array; verify the exact ordering suffix | Maximum continuous signal and power-off condition |
| Capacitance | 0.25 pF typical, 0.33 pF maximum | Test bias, frequency and package reference plane |
| Clamping | Specified at 5 A TLP | Same current, waveform and protected-IC limit |
| Channels and package | Four channels in a small package | Routing, stubs and channel count |
| Discharge rating | IEC ESD level | System test conditions, not just the component rating |
Do not use the 10 Gb/s example as evidence of USB4 qualification. For a faster lane, obtain the candidate’s applicable signal-integrity data at the target rate and validate the complete channel.
An ESD diode, a Zener diode and a surge TVS are different tools. The ESD diode is chosen for fast clamping and low capacitance on a high-speed line. A Zener may regulate or clamp a voltage, but its capacitance and turn-on behavior can be wrong for USB. A surge TVS may absorb more energy but is selected against a longer waveform. Matching the category name is not a qualification.
Check power-off and abnormal connection states as part of the electrical envelope. Where a device uses snapback behavior, review its holding characteristics with the protected circuit so it does not remain conducting in a supported operating condition.
How does capacitance load a high-speed channel?
It loads the signal path and can change insertion loss, reflections and the eye opening. The relevant comparison includes the package, footprint, vias and connector as well as the diode.
For perspective, a simple 0.3 pF capacitance has a reactance magnitude of roughly 106 ohms at 5 GHz, using 1 ÷ (2πfC). This single-capacitor calculation is not a USB compliance model: real differential channels have frequency-dependent structures, and the protector is part of that network.
Ask for appropriate models or S-parameters, their measurement conditions and package reference planes. Include the candidate in the channel review, then compare eye or compliance results at the required data rate and topology. A capacitance number alone cannot establish a pass.
Why can good diode specifications still give poor protection?
Current-path inductance can add substantial transient voltage before the disturbance reaches the protected circuit. A long branch to the diode or a weak ground return can undermine an otherwise suitable component.
The TI ESD layout guide recommends a direct route through the protection location near the connector and a low-inductance discharge return. Its analysis includes the contribution from L × di/dt.
An illustrative 1 nH parasitic carrying a 10 A/ns current change contributes 10 V. This explains sensitivity; it is not a prediction for a particular board. The actual waveform and distribution depend on the layout, enclosure and protection network.
A physically smaller replacement may improve routing, while a different pinout may force a harmful stub. Compare the proposed PCB change alongside the part quotation. If the board must remain unchanged, that restriction should be explicit in the RFQ.
Release the alternate on both signal and discharge evidence
First confirm normal operation across the required cables, data modes, power states and temperatures. Then perform the product’s specified discharge evaluation while monitoring defined functions: link continuity, reset behavior, data integrity and recovery.
Record temporary errors separately from permanent damage. Acceptance may allow a defined recovery for one product and require uninterrupted operation for another. The test plan should state that behavior before results are reviewed.
If the link fails normal signal testing, revisit channel loading and routing. If the discharge test fails, inspect current paths and coupling before simply selecting a higher-kilovolt diode. The TVS surge-selection guide covers the separate task of matching protection to longer surge waveforms.
A useful alternate-component inquiry includes the existing part, USB generation, pin group, allowed package changes, capacitance budget and required system test. For exact TI ordering codes, confirm the channel count, package and working voltage before requesting samples. A diode that passes the component test but fails the assembled-product discharge test is not a qualified alternate.
Frequently Asked Questions (FAQ)
Does a higher IEC ESD rating make a diode the better USB choice?
Only if its working voltage, clamping behavior, capacitance and layout also fit the protected interface. The highest component discharge rating can still be a poor electrical match.
Does a USB-C connector require the same protection on every pin?
No. High-speed pairs, USB 2.0 lines, configuration pins and VBUS have different electrical requirements. Assign protection according to the function and maximum voltage of each pin group.
Can passing a diode evaluation-board test certify the finished product?
No. Enclosure coupling, connectors, grounding, cable configuration and operating mode affect system behavior. Qualify the assembled product under its required test conditions.
What is the difference between an ESD protection diode and a Zener diode?
An ESD protection diode is optimized for fast transient clamping and low capacitance on a signal line. A Zener or TVS diode may handle more energy or regulate a voltage, but its capacitance and clamping behavior can be unsuitable for a high-speed USB channel. Select by the interface task, not by the diode category name.
